Asset is in development, documentation is a draft
2.Getting Started
Unity version
Please do not attempt to import this asset into a Unity 2021 project. It will auto-install the Collections v2.5.1 package, which isn’t compatible with this version. You’d have to manually downgrade it again to fix your project.
Under no circumstances must your project contain a script, without namespace, called “Spline” or “Editor”. This wreaks havoc to no fault of this asset.
Importing
At all times you must ensure your project is free of any console errors. Unresolved code errors will prevent this asset’s scripts from compiling. This results in all of its functionality remaining unavailable.
This asset imports as a package so won’t be placed in the “Assets” folder.

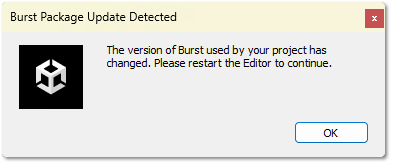

These package depencies will be automatically installed:
- Spline 2.8.3
- Mathematics 1.3.2
- Collections 2.5.7
- Burst 1.8.28
Project Setup

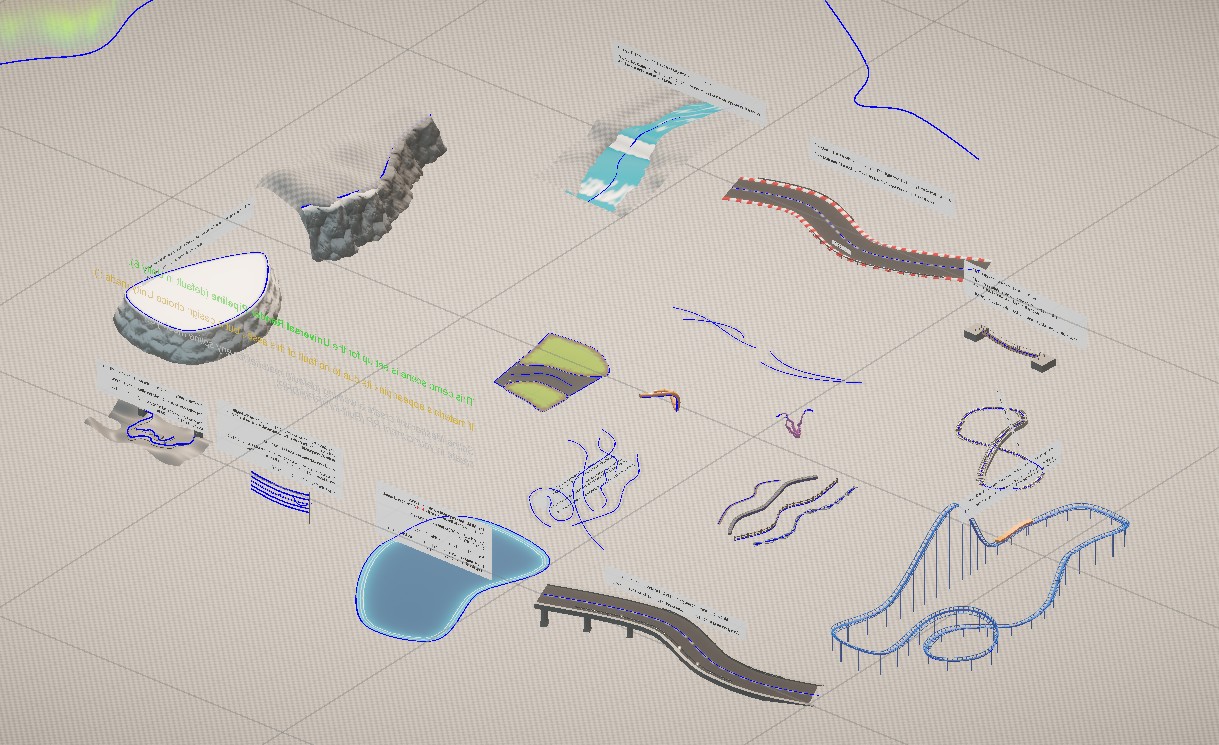

To view the demo scene, a project using the Universal Render Pipeline is required (Default in Unity 6+)
What about the Built-in RP and HDRP? Materials/shaders for the demo scene need to be configured for a specific render pipeline, so inherently excludes others. However, this asset works all the same regardless of any rendering configuration
Scene Setup
This tool use Unity’s native spline system. Familiarity with it is assumed here. Fortunately, it is rather straightforward to work with.
You can find a quick-start guide here: Quick start
You’ll need to know how to:
- Create a Spline object
- Use its editor tool
- Insert new knots
Component Setup
Time to start creating a spline mesh!
Go to GameObject->Spline->Mesh->Curve/Fill
See the Components section for a general overview of shared settings.
